resin installation quick start

You can start using Resin by simply expanding the archive, and starting Resin with a Java command line.

Quick Start for the Impatient

The Resin web server starts listening to HTTP requests on port 8080 and listens on port 6800 for load balancer or cluster messages. Resin can then be used for development or evaluation. The steps are:

  1. Install JDK 1.5 or later.
    • On Unix, set the JAVA_HOME variable or link /usr/java to the java home.
    • On Windows, check to make sure the JDK installation sets JAVA_HOME correctly.
  2. unzip/untar the Resin download. It will unzip into resin-3.1.x/.
    • resin-3.1.x is resin.home, the location of the Resin distribution.
    • For now, it is also resin.root, the location of your content. Soon, you will want to move resin.root to something like /var/www.
  3. On Unix, execute use ./configure; make; make install
  4. Start in development mode java -jar resin-3.1.x/lib/resin.jar
  5. Browse http://localhost:8080

Adding Content

Once you've made sure Resin is working, you'll want to add some content to the default web site:

  1. Add PHP files like resin-3.1.0/webapps/ROOT/hello.php.
    • The URL in your browser will be http://localhost:8080/hello.php
  2. Add JSP files like resin-3.1.0/webapps/ROOT/hello.jsp.
    • The URL in your browser will be http://localhost:8080/hello.jsp
  3. Add servlets like resin-3.1.0/webapps/ROOT/WEB-INF/classes/test/
    • Create a file resin-3.1.0/webapps/hello/WEB-INF/resin-web.xml to configure the servlet.
  4. Add .war files like resin-3.1.0/webapps/hello.war.
    • The URL in your browser is http://localhost:8080/hello
  5. Create web-apps directly like resin-3.1.0/webapps/hello/index.php The URL in your browser is http://localhost:8080/hello.
    • Create a file resin-3.1.0/webapps/hello/WEB-INF/resin-web.xml to configure the 'hello' web application.

Virtual Hosts

You can easily create virtual hosts by creating content in the resin.root/hosts directory:

  1. Add a hello.php to resin-3.1.0/hosts/localhost/webapps/ROOT/hello.php

Permanent content locations

Eventually, you'll want to move your content and configuration into a more permanent location:

  1. Create a permanent resin.root:
    • Create /var/www/webapps/ROOT/index.php
    • Virtual hosts go in /var/www/hosts/
    • Run java -jar resin-3.1.0/lib/resin.jar --resin-root /var/www
    • You can also set <root-directory> in the <cluster> to configure the resin root.
  2. If needed, modify the Resin configuration in resin-3.1.0/conf/resin.conf
    • You can copy resin.conf to somewhere like /etc/resin/resin.conf
    • Run java -jar resin-3.1.0/lib/resin.jar --conf /etc/resin/resin.conf

Running Resin as a daemon

In a deployment environment, Resin will run as a background daemon. The previous steps ran Resin in the foreground, which is convenient for development since the logging output goes to the console. When running as a daemon, Resin detaches from the console and continues running until told to stop.

  1. Start resin with java -jar resin-3.1.0/lib/resin.jar start
  2. Stop resin with java -jar resin-3.1.0/lib/resin.jar stop
  3. Restart resin with java -jar resin-3.1.0/lib/resin.jar restart

Until you're ready to deploy the server, those are all the steps needed to get started with Resin.


Resin 3.1 needs Java before it can run. It needs JDK 1.5 or a later JDK.

Sun's JDK for Windows, Solaris, and Linux can be found at Sun also has links to some other ports of the JDK.

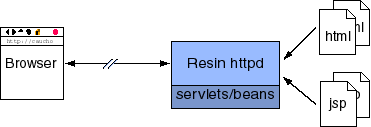

Resin Web Server

The easiest and fastest Resin configuration uses the Resin as the primary or only web server. This configuration provides a Java HTTP server. We recommend you start with this before trying any other configuration.

The server listens at port 8080 in the default configuration and can be changed to the HTTP port 80 during deployment.


  1. Install JDK 1.5 or later.
  2. Check that the environemnt variable JAVA_HOME is set to the JDK location, e.g. "c:\j2sdk1.5.0_01"
  3. Unzip
  4. Define the environment variable RESIN_HOME to the location of Resin, for example "c:\resin-3.1.0"
  5. Execute java -jar resin-3.1.0/lib/resin.jar
  6. Browse http://localhost:8080

Unix (including MacOS-X)

  1. Install JDK 1.5 or later and link /usr/java to the Java home or define the environment variable JAVA_HOME.
  2. tar -vzxf resin-3.1.0.tar.gz
  3. cd resin-3.1.0
  4. ./configure
  5. make
  6. make install
  7. Execute java -jar resin-3.1.0/lib/resin.jar
  8. Browse http://localhost:8080

For more details, see the Resin Web Server configuration page.

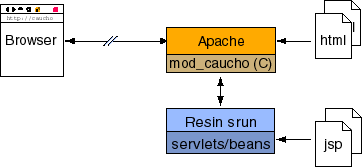

Resin with Apache

If you are already using Apache for your web server, you can use Resin with Apache. This configuration uses Apache to serve html, images, PHP, or Perl, and Resin to serve JSPs and Servlets.

The Apache configuration uses two pieces: a C program extending Apache (mod_caucho) and Java program supporting servlets and JSP (srun.) The two pieces communicate with a special high-speed protocol.

To configure Apache with Resin, you must configure both Apache and Resin. The Resin configuration is identical to Resin's httpd configuration. The Apache configuration tells Apache how to find Resin.

  1. On Unix only, compile using ./configure --with-apache; make
  2. Make any needed Apache httpd.conf changes
  3. Make any needed Resin resin.conf changes
  4. Restart Apache
  5. Start Resin with resin-3.1.0/bin/ on Unix or resin-3.1.0/httpd.exe on Windows.

On Unix, you'll run configure using --with-apache and then make:

unix> ./configure --with-apache=/usr/local/apache
unix> make
unix> make install

For more details, see the Resin with Apache configuration page.

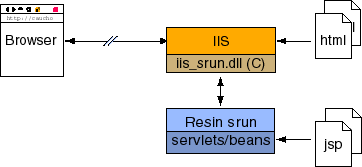

Resin with IIS

You can also combine IIS and Resin. IIS serves static content like html and images and Resin serves JSPs and Servlets. The IIS configuration requires two pieces: isapi_srun.dll, an ISAPI extension which lets IIS talk to Resin, and srun, Resin's Java support.

For this setup you must configure both IIS and Resin. The Resin configuration is identical to Resin's httpd configuration. The IIS configuration tells IIS how to find Resin.

  1. Setup the registry and IIS using resin-3.1.0/bin/setup
  2. Any needed Resin resin.conf changes
  3. Restart IIS
  4. Start Resin with resin-3.1.0/httpd.exe.

For more details and troubleshooting steps, see the Resin with IIS configuration page.
